Carclo imported optical convex mirror (convex mirror is a mold product, some products have scratch marks on the edge)
The “forward” tail mechanical switch is durable and easy to replace and can load transient currents up to 8A.

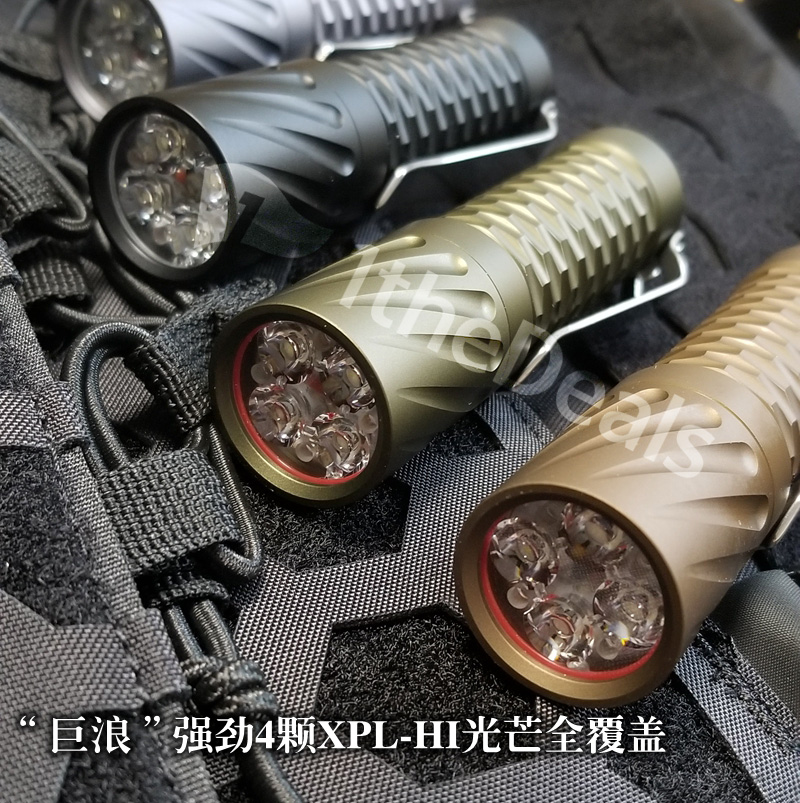

Light bulb (cold white light 6500k) for CREE XPL-HI 4 lamp beads parallel shunt
The brightest single lamp has an average of 1100 lumens and four up to 4400 lumens (theoretical value)
(XP-L HI type) The luminous flux is depleted, and the value is reduced. There are also about 4,000 lumens.
The brightness is very bright, the heat is very great, and the extremely bright gear starts to be hot after 10 seconds. Please be careful when using it.
The factory default setting is 50% brightness, and the high temperature overload will automatically jump to the low light mode.
18650 lithium battery continues to light life, depending on the lithium battery brand, capacity mA / working current and other factors
Use the test LG 3400 mAh / or Panasonic green robe lithium battery to do continuous lighting test on this giant wave flashlight
Extremely bright 0.5H automatic jump in bright (in the soaking water or fan cooling highlight mode length 1.5-2H) /50% medium bright 3-3.5H / low 24H or more

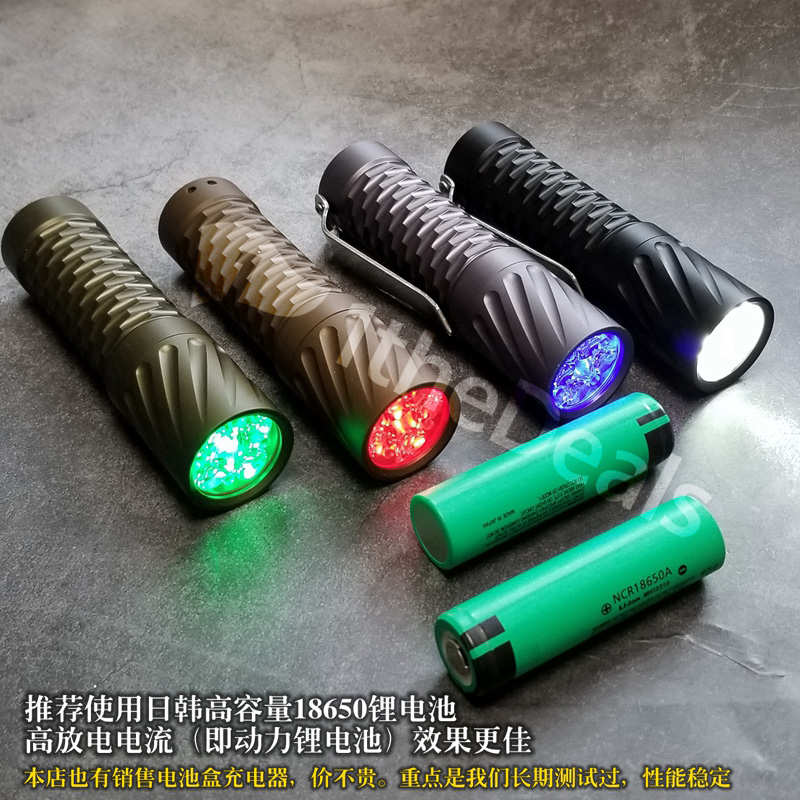

Background Ambient Light Green/Blue/Red Light Optional (Photographed with light color, no notes are randomly sent)
Housing material; aluminum alloy 6064 T6+ rear sandblasting + hard oxidation. (The titanium alloy / copper plate is available in October, please pay attention)
Color: black / gun gray / mud color / army green (non-collision)
Supplied: screw/seal ring + metal back clip (requires screw hole for back clip)
Dimensions: length 108mm diameter; 28.5mm
Weight: 104g (without battery)
Single 18650 lithium battery power supply, working voltage: 2.9-4.2V.
It is recommended to use imported large capacity lithium battery, and the high discharge power lithium battery is better.
It is not necessary to have a protective plate lithium battery, and the IC circuit has overcurrent and low voltage protection.
1x Click – Standard 5 mode
2x click -Turbo
3x Click – Moonlight
4x click – Special modes (Strobe, Beacon, SOS)
5x click – Stepless ramping (auto)
6x click – AUX LED (Lo, Mid, Hi)
7x click – Single mode @50%
8x click – Temperature setting (40°C to 70°C range)
9x click – Voltage read out
10x click – Factory reset
Low voltage alert at 10s interval. Auto shutdown when voltage dropped under 2.7V.
Emitter: Osram KW CSLNM1.TG 6500k, SST20 4000K or Nichia 219C 4000K
Reflector: smooth reflector
Lens: Glass with anti-reflective coating
Intensity: ~27000 cd ANSI throw ~330 m (KW CSLNM1.TG)
~11250 cd ANSI throw ~ 210m (SST20 and Nichia)
Firmware: The FW1AA uses free software called Andúril, distributed under the terms of the GPL v3. Code is available from http://tiny.cc/TKAnduril
