ASTROLUX® FT03 SFT40 2200lm 1300m NarsilM v1.3 USB-C Flashlight

$50.95 $39.99

Brightness: 2200 lumens (max.)

Features: Texas Avenger FET Driver NarsilM v1.3 with USB-C charging

Beam Distance: 1300 m

Battery Type: 1* 26650/21700/18650 (sold separately)

Categories: LED Lights, LED Flashlights Tags: 18650, 21700, 26650, ASTROLUX, Banggood, searchlight, SFT40, Thrower, USB-C
Share:
  • Description
  • Additional information
Description

Special Deal:

Price ($):

39.99

Coupon:

BG03SFT40

Valid Till:

May 31, 2022

Store:

Banggood

Exclusive deal for 1theDeals.com. Sharing of our coupon code is strictly prohibited.

Specifications:

Product name: ASTROLUX FT03 LUMINUS SFT40 LED Flashlight
Brand: ASTROLUX
Model: FT03
LED type: LUMINUS SFT40
Color Temperature: Cool White (CW): 6500K
Battery Configurations: 1x 26650/ 21700/ 18650
Range: 1300 m
Peak Beam Intensity: 400000 cd
Lumens: Max. 2200 lm
Runtime: –
Voltage Input: 2.8V – 4.2V
Firmware: Tom E’s open-source GPL NarsilM v1.3 adapted by Texas_Ace
Mode(s):

Default UI: Smooth ramping

This feature-rich UI provides for smooth ramping of the light output between 0 and 50%, with an easily- accessible 100% TURBO mode. Turn the FT03 ON: single-click the button, FT03 turns ON using the previously used light output level
Ramp light level: press&hold button
Reverse ramp: while ramping in one direction, release button briefly and press&hold again
Instant TURBO: double-click
Turn the Lamp OFF: single-click
MOON mode: from OFF: press the button and release as soon as the FT03 turns on
Strobes: double-click for TURBO, and then double-click again
The strobes are deactivated by default. To enable strobes you must klick 3 times in setting #4 (ramping) or setting #8 (modes). (Use single-clicks to cycle forward through the different types of strobes, but you have to be quick: If resting on a strobe longer than 1.2 s it locks in and the next single- click is OFF. Press&hold at any time to cycle backwards through the strobes.)
Battery status: triple-click (4 blinks, a short pause, then 1 blink would indicate 4.1 V average per cell, for example)
Electronic lock-out: four clicks to disable the FT03, same to re-enable the Lamp
MOMENTARY mode: five clicks (loosen and re- tighten the tail-cap to return to normal operation)
Factory reset: triple-click (battery status mode), then double-click (driver temperature mode), double-click again (firmware version mode), then press&hold for about 2 s. Four blinks confirm a successful reset.

Alternative UI: Mode-sets

The FT03 is factory-set to operate using the contemporary RAMPING user interface, as described in the previous section. However, the FT03 can also be operated using a more conventional MODE-SET style user interface. (See next section for detail on how to set UI options).
Using the MODE-SET UI the output does not ramp, it steps from one mode to the next using single-clicks.
Turn the FT03 ON: single-click
Next mode: single-click before the current mode ‘locks in’ (1.2 s)
Previous mode: press&hold
Last mode [100%]: from OFF: press&hold
Turn the Lamp OFF: single-click button, after resting on a mode more than 1.2 s (mode locked in)
Strobes: press&hold The strobes are deactivated by default. To enable strobes you must klick 3 times in setting #4 (ramping) or setting #8 (modes).
(Use single-clicks to cycle forward through the different types of strobes, but you have to be quick: If resting on a strobe longer than 1.2 s it locks in and the next single- click is OFF. Press&hold at any time to cycle backwards through the strobes.)
Battery status: from OFF: single-click followed
by press&hold (4 blinks, a short pause, then 1 blink would indicate 4.1 V average per cell, for example) Electronic lock-out: from OFF: double-click followed by press&hold, same to re- enable the FT03
Factory reset: from OFF, single-click followed by a press&hold (battery status mode), then double-click (driver temperature mode), double-click again (firmware version mode), then press&hold for about 2 s. Four blinks confirm a successful reset.

Advanced operation

Refer to manual
Switch Type: Electronic (side)
Switch Location: Side of the flashlight with LED indicator
Tail Stand: Yes
Material: Aluminum alloy with Type III hard-coat anodizing
Impact Resistant: 1.5 Meter
Waterproof: Equivalent to IPX7, do not immerse in liquids
Lens: Glass with anti-reflective coating
High quality smooth reflector
Color: Black / Blue / Green
Weight: 295g without battery
Size: 69.5mm x 34.5mm x 170mm (Head diameter x Body diameter x Length)
Package Included: 1 x Astrolux FT03 SFT40
2 x Spare Waterproof O-rings
1 x Lanyard
1 x User Manual



User Interface:

  1. By default the FT03 is set to use the very intuitive Narsil smooth RAMPING UI. Instant access to a TURBO mode is also provided.
  2. A more conventional discrete level MODE-SET UI is available as an alternative. Any one of 12 pre- defined mode-sets can be selected.
  3. MOMENTARY mode is useful for signaling purposes or rapidly/briefly lighting up targets.



Package Included:

1 x Astrolux FT03
2 x Spare Waterproof O-rings
1 x Lanyard
1 x User Manual

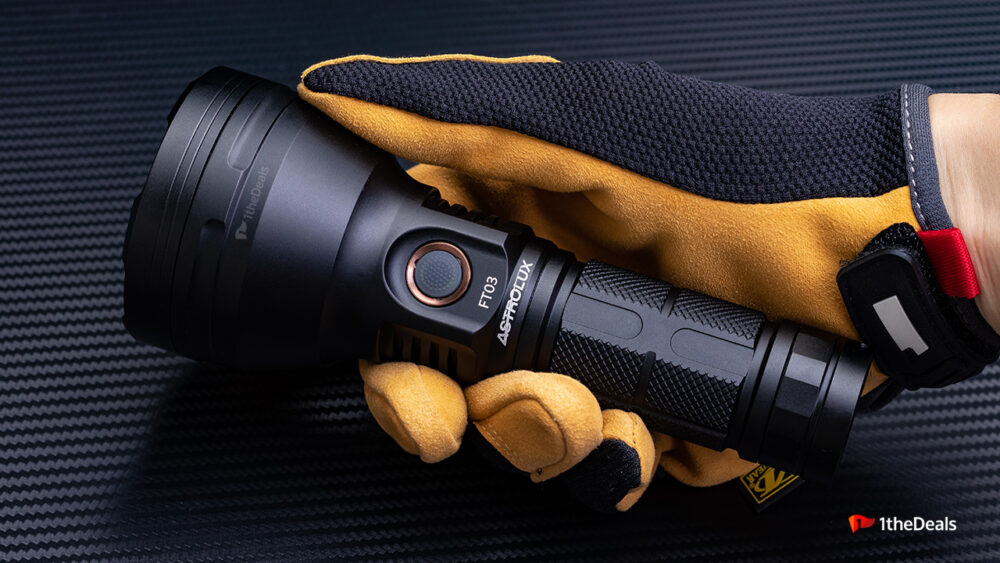

1thedeals-1280p-featured-Astrolux-FT03-01

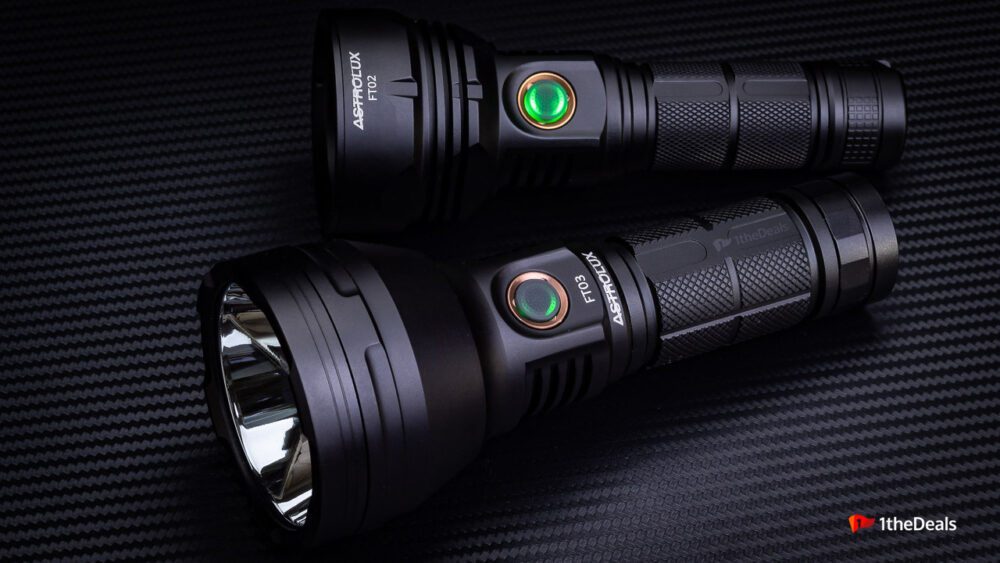

1thedeals-1280p-featured-Astrolux-FT03-03

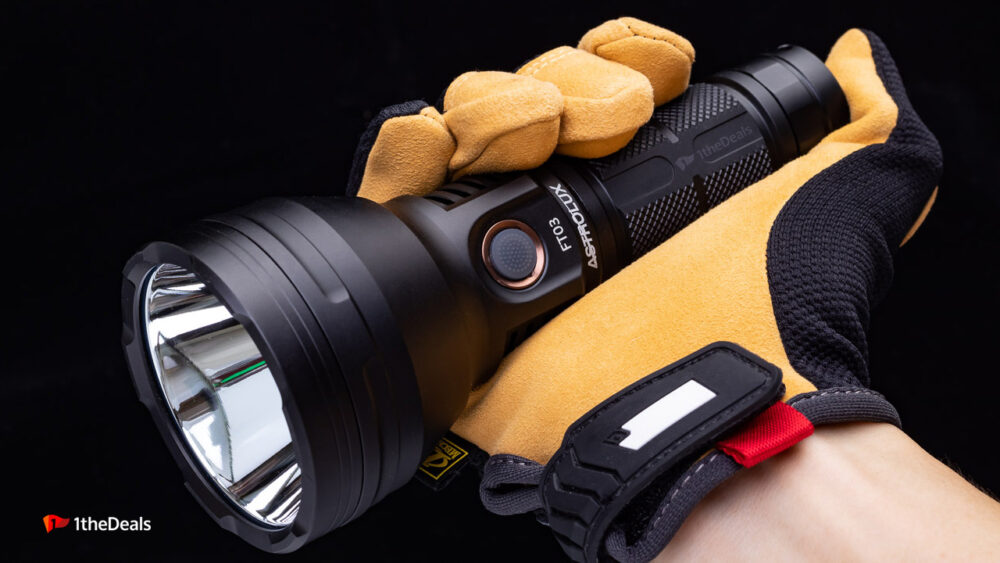

1thedeals-1280p-featured-Astrolux-FT03-02

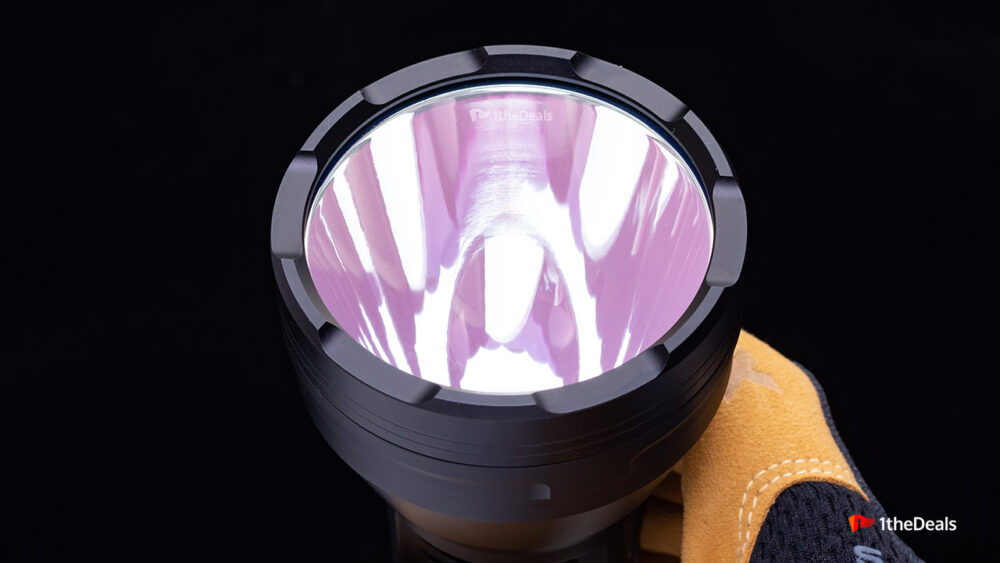

1thedeals-1280p-featured-Astrolux-FT03-04

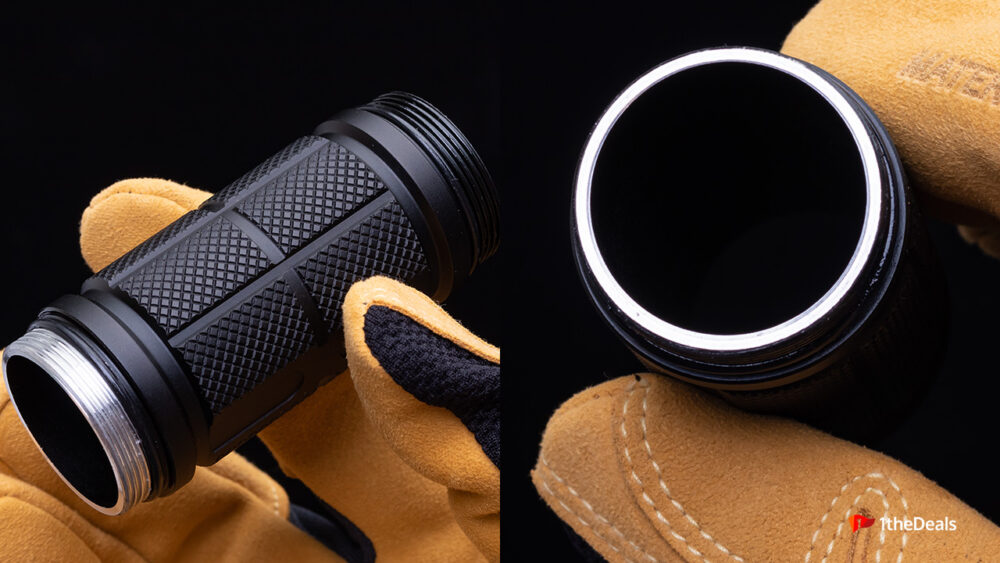

1thedeals-1280p-featured-Astrolux-FT03-05

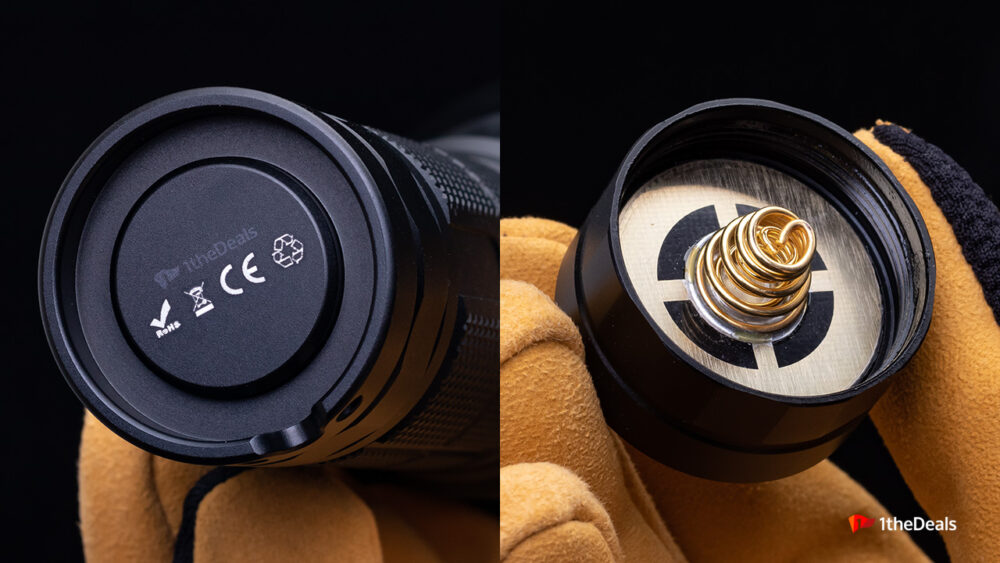

1thedeals-1280p-featured-Astrolux-FT03-07

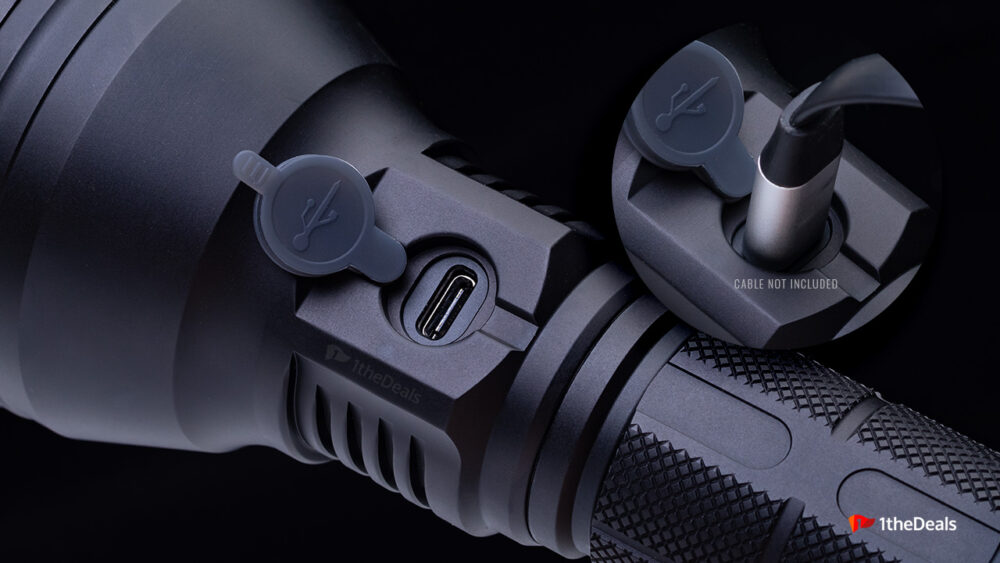

1thedeals-1280p-featured-Astrolux-FT03-08

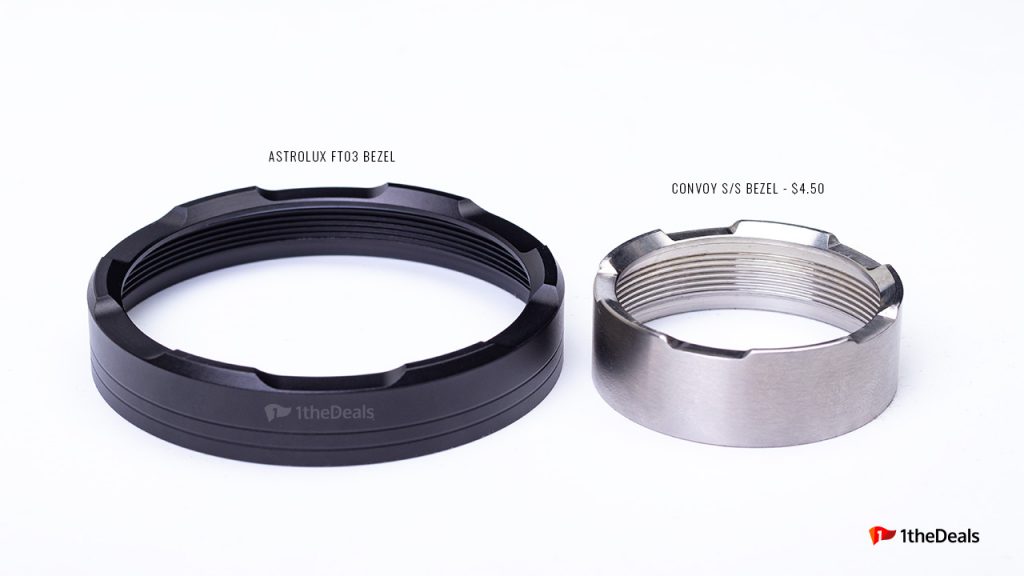

©1thedeals.com-1280x720-featured-Astrolux-FT03-bezel-02

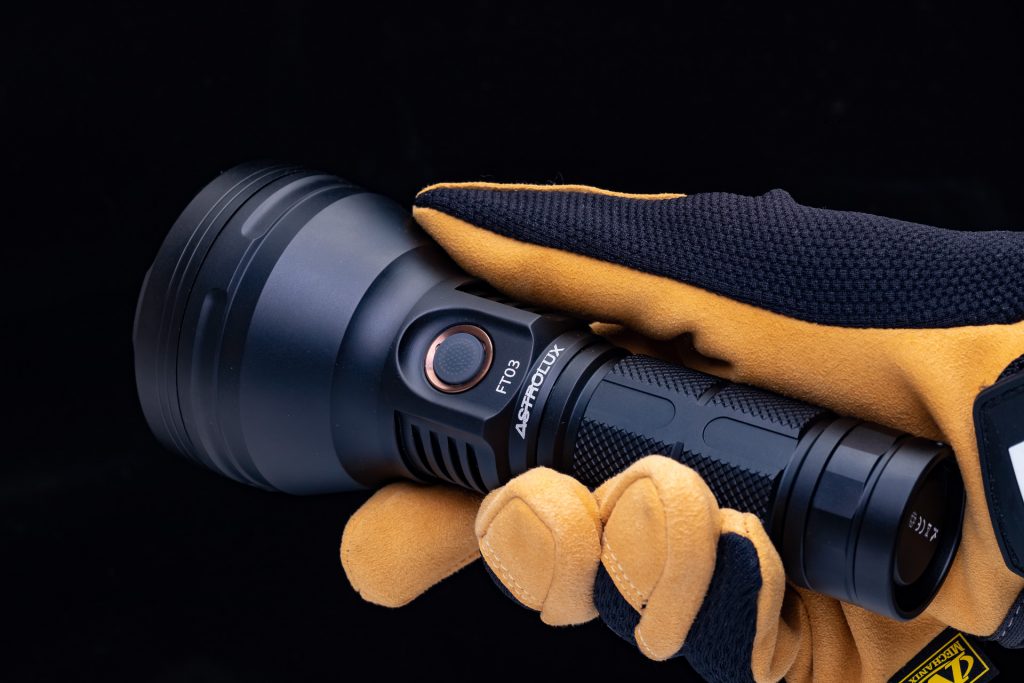

FT03-slider-ad-2
Additional information
Brand

ASTROLUX

Emitter brand

Luminus

Sponsors & Partners

Banggood

Material

Aluminium

Color

Black
