NIGHTWATCH A15 15*N7-165HPE 94000lm SuperNova Avaritia A15 4*21700
Emitter: 15*N7-165HPE LEDs (Gen 1) 5050
Max. Brightness: 94000 lumens
Color Temperature: Cool white
Battery Type: 4* 21700 Li-ION Rechargeable Batteries
Feature: Type-C PD 19A Fast Charging
Special Deal:
Price ($):
-
Coupon:
1TDNEW
Exclusive deal for 1theDeals.com. Sharing of our coupon code is strictly prohibited.
Features:
- The waterproof plug of the charging port of the flashlight is made of metal. Available in gold, silver and black.
- The head of the flashlight is made of gold-plated stainless steel.
- The glass is tempered with ultra-white glass substrate. Double-sided AR anti-reflective green coating. The exterior composite anti-fouling coating is waterproof,
fog-proof and oil-proof. - The head uses an ultra-thick (15mm thickness) integrated compartment and thick walls to maximize heat capacity.
- The barrel body and head adopt more stable thread conductivity and are coated with HSC PIUS PASTE conductive copper paste, which is resistant to
- Oxidation increases the contact area. 4 customized small cup heads with real gold-plated stainless steel screw limits.
Operations:
Mode:
- Press and hold for 0.5S to turn on the light and click the button to cycle through the gears.
- Press and hold for 0.5S to shut down. Double-click to turn on extremely bright. Three hits to activate full power flash.
- Four-click lock button in shutdown state to prevent accidental touch.
- Four clicks to unlock.
Driver:
The driver has two thermal probes, one onboard and one set in the center of the integrated warehouse. If any probe detects that the temperature exceeds
75°C, the temperature control will be triggered. Above 75℃, 3 large MOS tubes will be closed. After lowering to the constant current position, it
intelligently and slowly rises and falls to stabilize the temperature at about 65°C, and the body temperature of the outer shell is about 55~60°C.
Charging: After plugging in the typec cable, the button indicator light will light up and display red, purple, and blue cycles, staying
for 2S in each color. Press the button in the displayed color to select the charging power. The button light flashes when charging. Always
on after full.
Specifications:

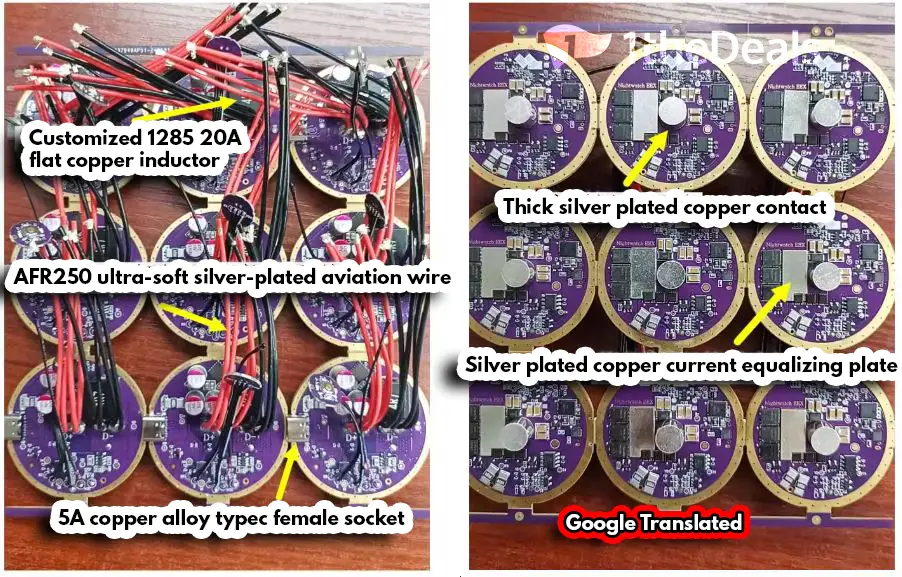

Flashlight driver introduction:
- The flashlight uses a 50mm driver model EEX.
- The driver integrates a 30A constant current module, a 19A super fast charging module, and a 400A direct drive module.
- The driver uses a 4-layer 2OZ2U immersed gold board. The power layer is routed separately for heat dissipation and smaller resistance.
- The constant current module uses a microcontroller to real-time control the PWM duty cycle of three high-quality small MOSs to achieve a constant current of 30A. Independent analog-to-digital converter independent gate driver charge pump boost power supply.
- Efficient and stable, the first in the industry. Efficiency up to 96%
- The direct drive uses a charge pump boost power supply and an independent gate driver to drive 3 BSC007N04LS6 high-power MOS. The
measured internal resistance is as low as 0.75mr. When extremely bright, 3 large, 3 small and 6 MOS are turned on at the same time. The internal
resistance is as low as 0.2mr and can carry currents up to 400A! For heat dissipation and current sharing, the D-level MOS is also welded with a copper-
plated silver-plated current sharing board. - Fast charging uses a microcontroller to control the fully integrated half-bridge driver to output constant current charging up to 19A! The inter-board
conversion rate is as high as 94%. Charging supports PD protocol or DC.
The positive electrode of the battery compartment uses a 2mm pure copper bus plate and an integrated insulating and anti-reverse dual-purpose nylon gasket.
The 4-cell battery contacts are made using the silver contacts of the relay. The bus plate and the drive positive electrode are also connected using silver contacts.
touch.
The negative electrode uses a 3mm manifold with a special structure. It is guaranteed to have extremely low resistance even when
it can move.
The manifold is fixed to the barrel with four M4 copper silver-plated screws.
A hexagonal screwdriver is included with the flashlight. The flashlight supports super fast charging. It is recommended to reduce the number of times the battery is removed to reduce wear damage.
Package Included:
1x NIGHTWATCH A15 15*N7-175HE 94000lm SuperNova
1x Instruction Manual
