[4K] LUMINTOP FW21 PRO 3*SFN55.2 21700 Flashlight Quick Preview
Test Conditions
| Brand: | LUMINTOP | |
| Model: | FW21 PRO | |
| Emitter(s): | 3 | SFN55.2 |
| Max. Brightness: | 10000 | lm+ |
| Test Date: | Aug 17 - Aug 25, 2023 | |
| Power Source: | Molicel 21700 P42A | 4200mAh |
| Ambient Temperature: | 29.9 | °C |
| Humidity: | 77.5 | % |
Test Results
Updated on Aug 25, 2023
| Firmware: | Anduril | v1 |
| Visible Pulse Wave Modulation: | Present | |
| Low Voltage Protection: | 2.95 | V |
| Parastic Drain: | - | mA/ μA |
| Max. Charging Current: | N/A | A |
| Charging Termination Voltage: | N/A | V |
| Battery Capacity: | N/A | mAh |
| Weight: | 117 | g |
LUMINTOP FW21 Pro Turbo Runtime - 1 min Duration
No Data Found
LUMINTOP FW21 Pro Turbo Runtime
Temperature set at 60°C (30°C+30°C) Max.
Low voltage protection kicks in at 2.95V.
No Data Found
LUMINTOP FW21 PRO SFN55.2 Runtime - 1 hour Duration
No Data Found
Manufacturer's Specs
Specifications:
[SUBJECTED TO CHANGES - FULL SPECS will be updated once official release is announced.]
| Emitter | 3*SFN55.2 LED on a copper DTP MCPCB |
| Optic | Aluminium Orange Peel reflector |
| Lens | Glass with anti-reflective coating |
| Flux | >10,000 lm |
| Intensity | TBA |
| Firmware | The FW21 pro uses free software called Andúril, distributed under the terms of the GPL v3. Code is available from http://tiny.cc/TKAnduril |

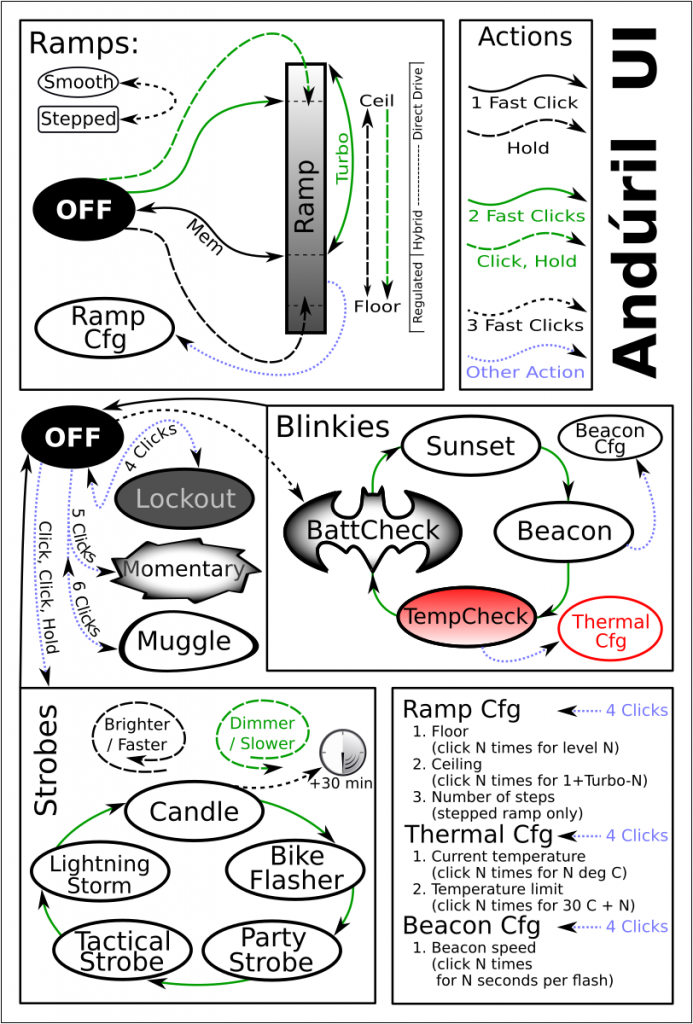

| User interfaces | [1] By default the FW21 pro is set to use SMOOTH RAMPING. |
| Instant access to TURBO mode is also provided. | |
| [2] A more conventional STEPPED RAMPING UI is available if you like discrete modes level. You can choose how many steps you want. | |
| [3] MOMENTARY mode is useful for signalling purposes or rapidly/briefly lighting up targets. To exit this mode, physically disconnect power. | |
| [4] MUGGLE mode uses a reduced output. | |
| [5] It has an electronic LOCKOUT for safety but acts also as momentary low light. Other functions: Battery check, sunset, beacon, tactical strobe, party strobe, bike flasher, candlelight, lightning storm. | |
| Battery | One flat-top or button-top 21700 cell. An unprotected cell is recommended. Max. length 70.5 mm. Cell is not included. |
| Driver | FET+7+1 driver. Low parasitic drain while OFF |
| Body | Aluminium with hard-coat anodizing |
| Switch | Electronic tail switch |
| Ingress rating | Equivalent to IPX7 |
| Weight | Approximately 120 g without cells |
| Size | 40 mm Ø head x 102 mm length. |
